Fixed Backsense Object Detection System – 3m x 2.5m

Brigade 3 metre detection range 2.5 metre width BS-7030 (4527)

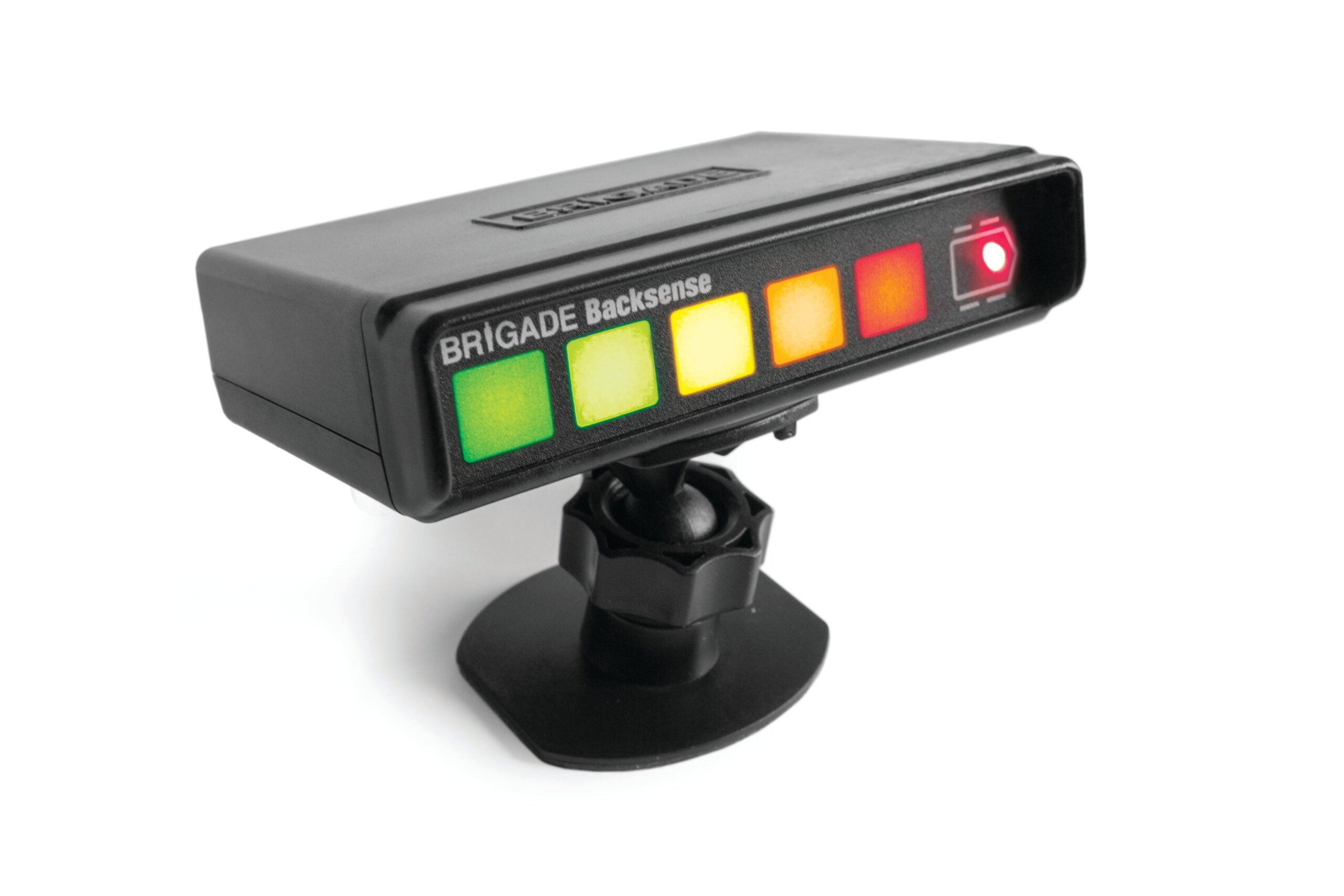

Sensor, AV Display, 9 metre cable

Kit contains:

• Sensor
• AV Display
• 9m Cable
• 3 year warranty

Features

• Close detection zone combined with targeted beam pattern.
• Controlled beam pattern to minimise false warnings.
• Excellent close-in detection.
• Frequency modulated continuous wave radar technology.
• Can trigger other vehicles safety devices such as camera monitor systems or reversing alarms.
• Eliminates possibility of driver interference. The audible warning buzzer cannot be switched off, providing fleet operators with peace of mind.
• Clear, easy-to-read display and wide volume range of audible alert.
• Suitable for both on and off road applications.
• Extremely rugged design for severe weather conditions and all terrains.
• Effective through non metallic objects – can fit behind plastic or glass fibre body work.
• Self diagnostics alert operator to system errors.
• Choice of detection ranges.
• 5 stage audible and visual display.
• Comperhensive certification.

Power

• Current: 0.8 Amps
• Power Consumption: 8 Watts

Durability & Standards

• Mechanical shock: 100G
• Mechanical vibration: 8.3G
• Operating temperature: -40 to +85°C
• CE marked
• E-Marked: UNECE R10 compliant
• BS EN 13309: 2010
• ISO13766: 2006
