Brigade 360 Camera System – Excludes Monitor and Cables

Brigade 360° Camera System BN360-200 (5200) (Excludes Monitor and Cables).

Contents

• 1 x ECU

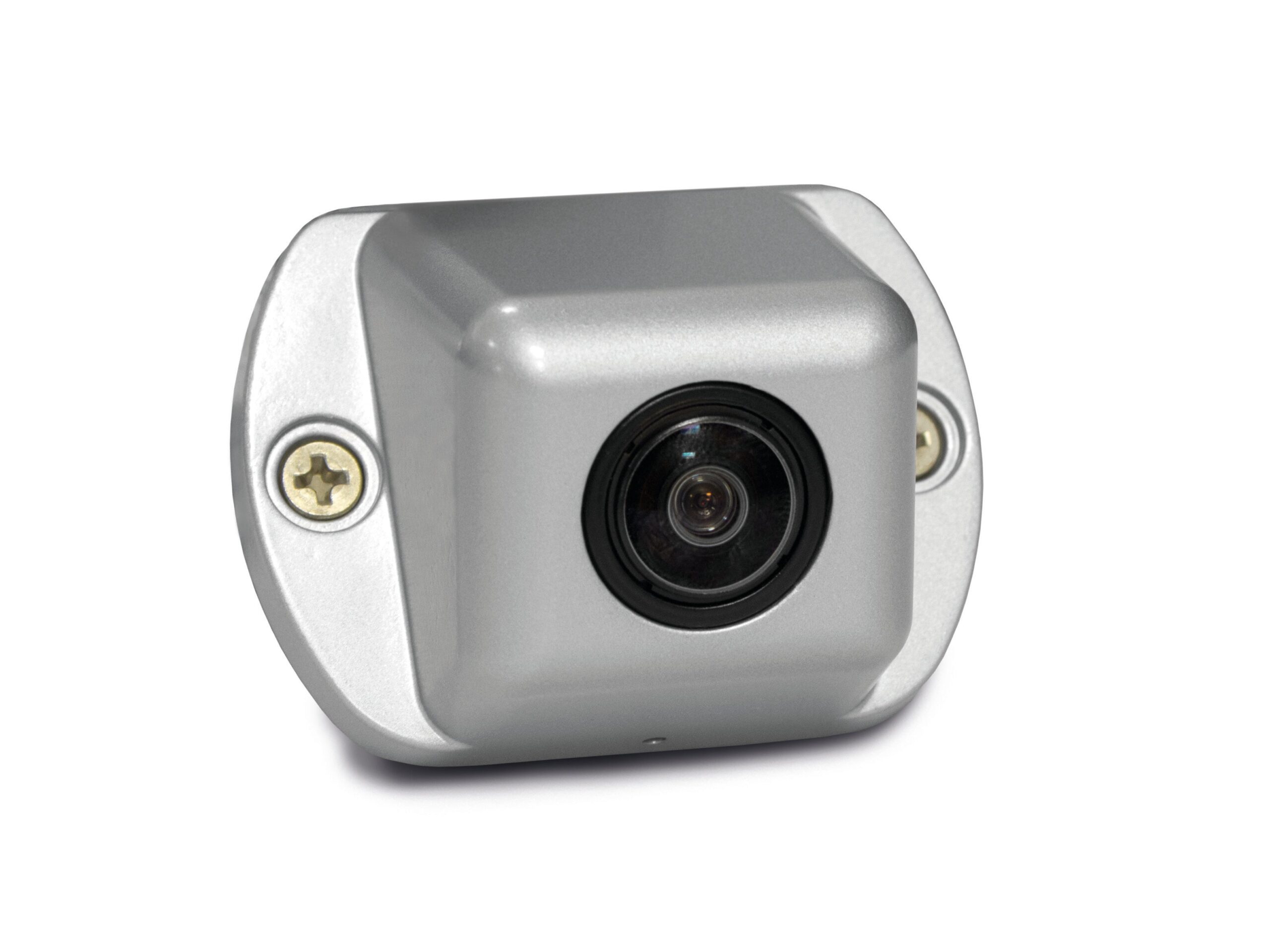

• 4 x BN360 – 100C Cameras
• 1 x Video output cable to connect to SELECT range monitor.
• 1 x set-up/view-select button
• IR receiver & remote control
• 1 x ECU power harness
• 1 x ECU interface harness
• 5 year warranty

• 360° image
• 19 different view modes (max 10 views per chosen confirguration group) including: landscape or portrait configurations, front and rear crossing-traffic, left and right lane changing assist, customisable vehicle position
• 4 pre-difined config groups
• configure and customise set up via monitor and IR remote control
• Left, right, reverse & speed signal triggers
• Configurable on-screen parking markers
• 3 x video outputs
• Ultra-wide viewing angle cameras (HxV) 185° x142°
• 1/3.6” CMOS sensor
• TV system: NTSC or PAL via switch on ECU (cameras NTSC only)

Power

• Power consumption: 8 Watts
• Current: 0.65 Amps
• 12-24Vdc

• Mechanical vibration: 8.5G
• Mechanical shock: 50G
• Operating temperature: -30 to +75°C
• IP30 ECU
• CE marked
• E-Marked: UNECE R10 compliant
• FCC Approved
• IC Approved
• ISO 20653:2006
• ISO 13766:2006
• EN 13309:2010
• *Camera monitor system R46 approved

Please Note; a calibration kit is required for this installation

Does not include monitor and camera extension cables
