Backsense Radar on-screen display kit

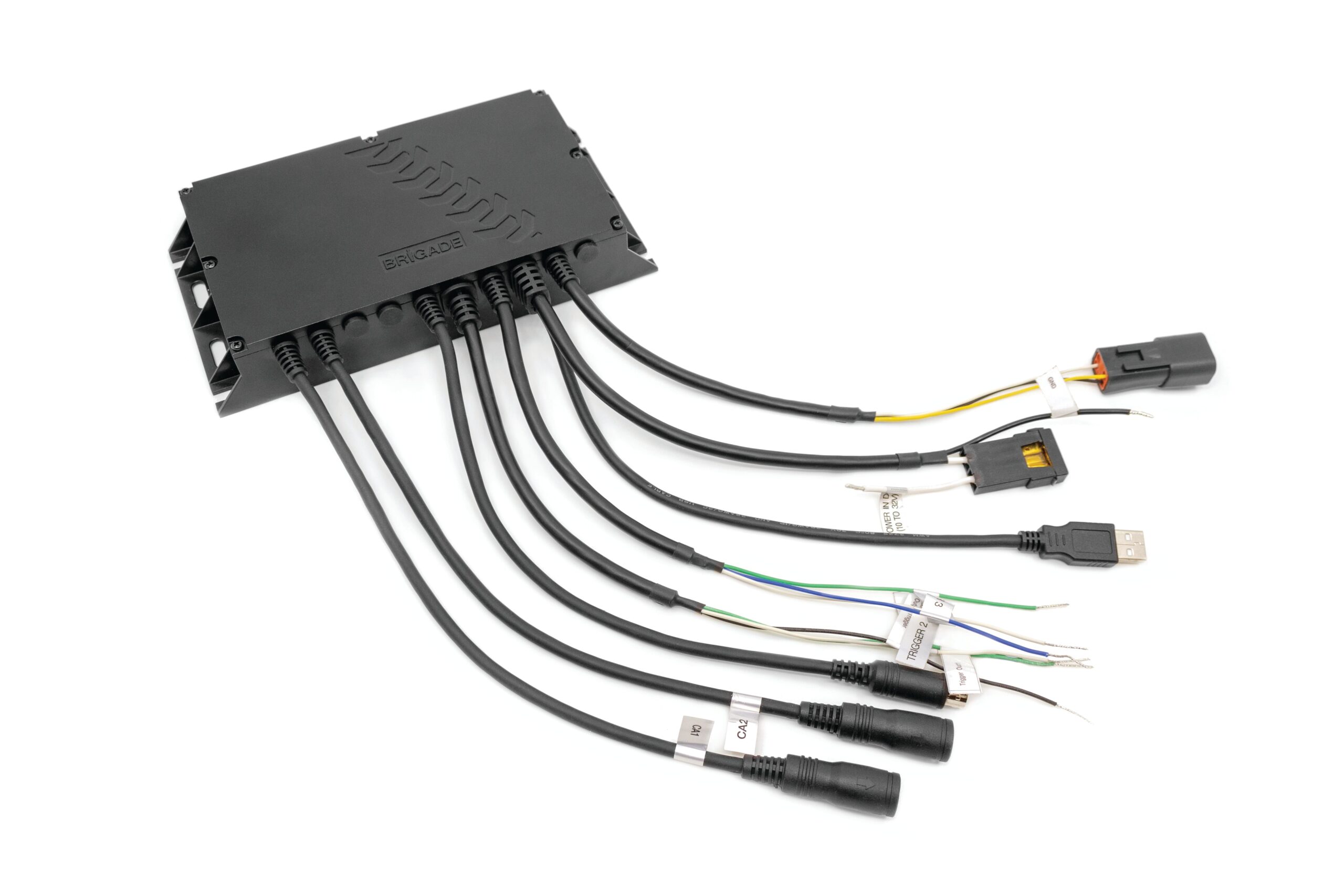

Brigade Radar sensor & On-screen display module BS-9001-OSD (5658)

Camera Monitor system not included

Brigades Radar sensors minimise both vehicle damage and collisions by informing the driver of the distance between vehicles and obstacles, whether moving or stationary. Ideal for vehicles and machines manoeuvring at low speed. By working in conjunction with a Backeye camera monitor system and up to two Backsense Network radar detection systems, the on-screen display module warns the driver of obstacles in the danger zone by overlaying 5 stage audible and visual radar data onto the camera image on the monitor.

• Allows 5-stage audible and visual radar data to be overlayed onto camera images on in-cab monitor
• 12-24Vdc
• Detection length: up to 30m (minimum programmable distance 3m)
• Detection width: 2 to 10m
• Sensor size (WxHxD) 217 x 129 x 50mm
• OSD ECU size (WxHxD) 195 x 120 x 35mm
• 2 camera inputs
• 2 BS-9000 Backsense® inputs
• 3 trigger inputs
• 3 trigger ouputs
• 3 year warranty

Contents

• 1 x OSD Radar ECU
• 1 x BS-9000 Backsense® radar sensor
• 1 x Power cable
• 1 x Extension cable 9m
• 3 x Network Y-cable
• 2 x CANBUS terminator

• Overlay on monitor of detection data from up to 2 BS-9000 radar sensors
• Each radar can be shown in one of 8 positions around the monitor/vehicle
• Compatible with Backsense® BS-9000 Network radar sensors only
• Programmable: Detection area, Blind zones – system ignores fixed objects, Overlay transparency level
• Radar system fault displayed on monitor
• USB connection for configuration via PC
• Compatible with MDR, Backeye®360 n& Elite range camera monitor systems (Select range via adapters)
• Audible warning via monitor or optional internal buzzer
• Supports external warning alarm

Durability & Standards

• Operating temperature: –40 to +85ºC
• OSD: IP30
• CE marked
• E-Marked: UNECE R10 compliant
• FCC Approved
• IC Approved
